Piston kit 38.5/12mm for Sachs, first oversize
€21.70
Description
Article no.: 10771
Complete kit with piston, rings and cams.
Oversize number 1.
Design:
For 38,5mm cylinder with round intake or diaphragm.

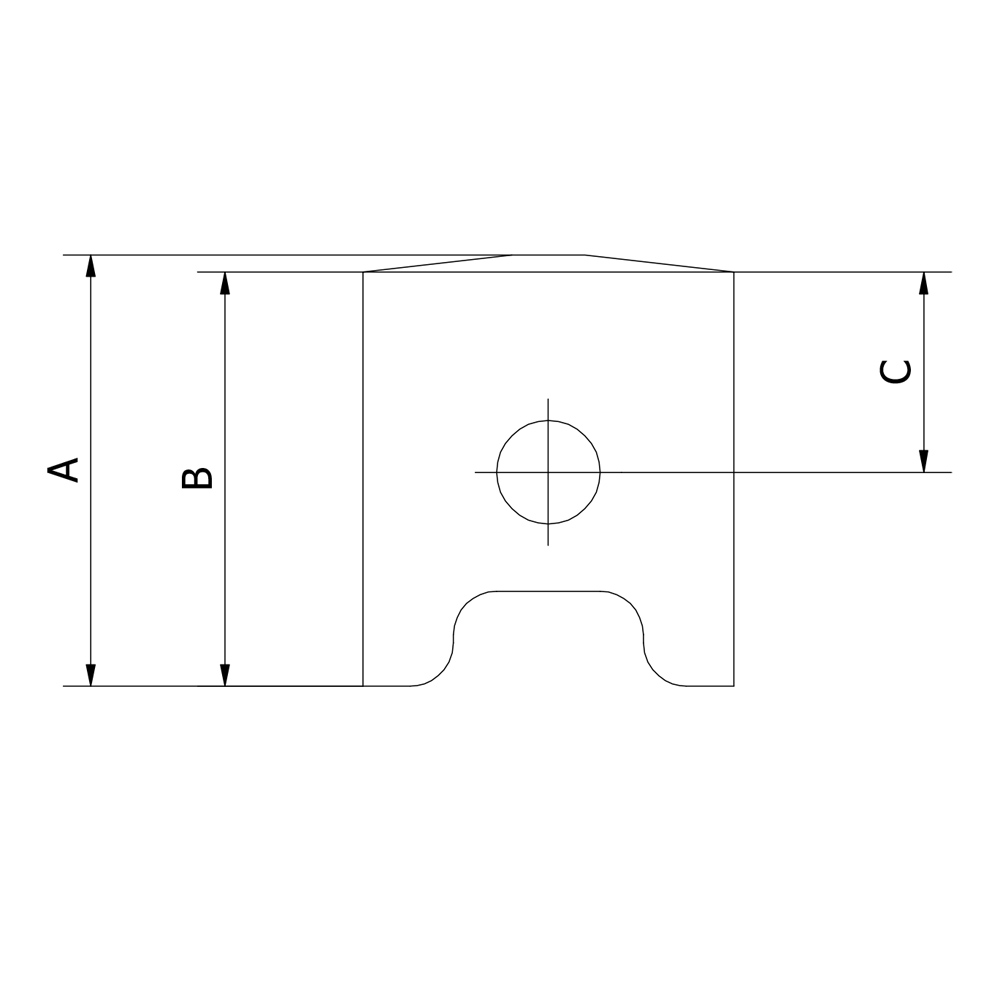

A-dimension: ~52,5mm
B-dimension: ~49,5mm
C-dimension: ~27,5mm
All NTS pistons are of very high quality and are always manufactured in Taiwan, in a factory with over 50 years of experience in piston manufacturing, according to NTS own manufacturing data and CAD drawings.
Contains:
1st. Piston 38,5mm
2pcs. Piston rings 38,5x2mm (10759)
1st. Piston bolt 12x31mm (10617)
2pcs. Locking clip 12mm (10356)
The piston must be oiled during assembly and do not forget to check the needle bearing!
For the longest possible durability and service life, the piston should be "run in" during the first approx. 20 miles.
*Pistons marked with an arrow, the direction of the arrow should be towards the exhaust port.
*Pistons marked with IN, IN should be towards the intake.
