Ignition system switchless 12V-43W for Sachs 50S

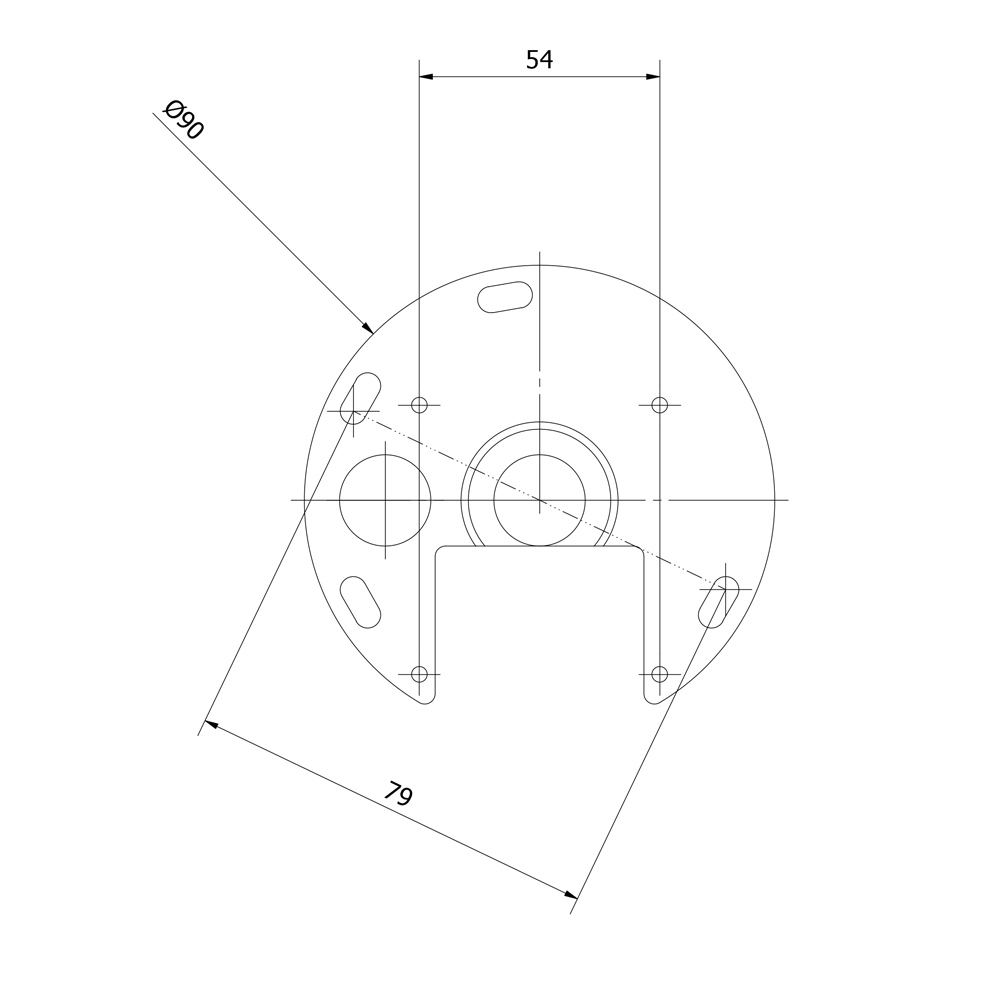

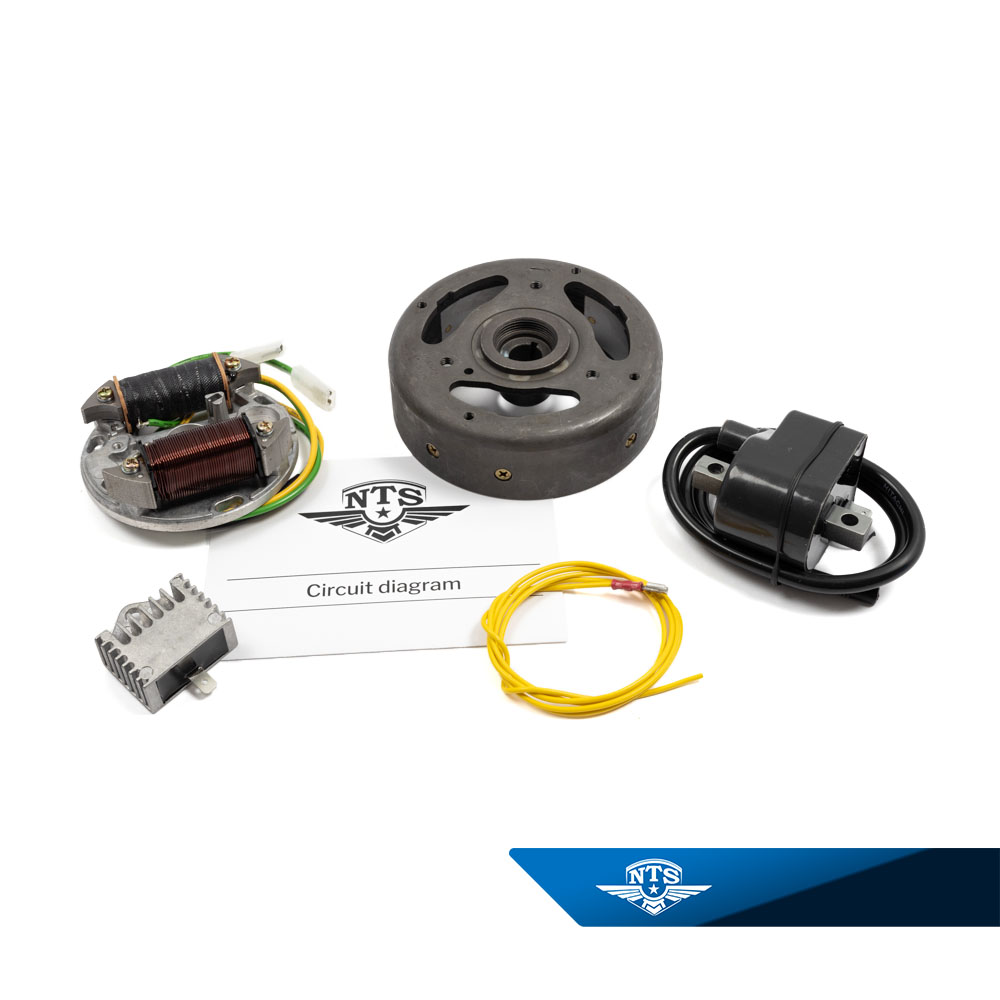

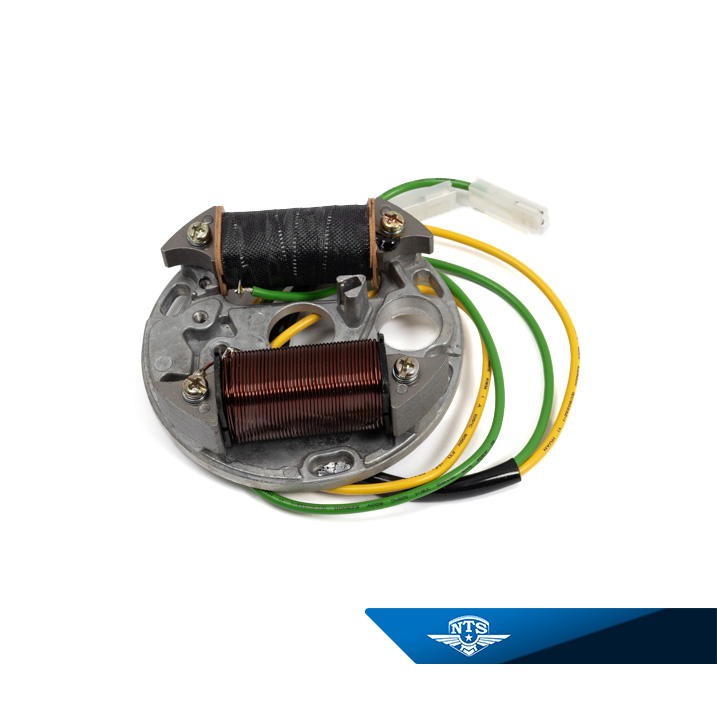

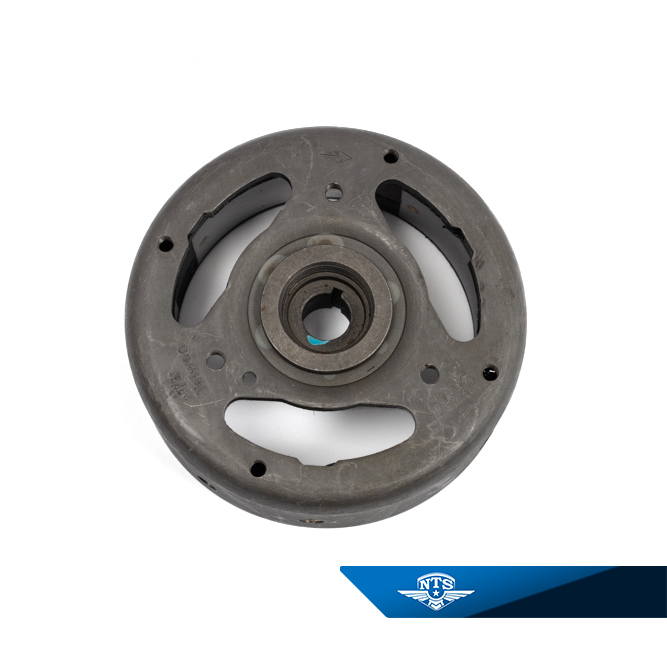

High quality and very user friendly switchless flywheel magnet. Fits primarily Sachs 50S engines. Fits speed wind cooled and fan cooled models. The kit is delivered complete as shown. Can replace Bosch, Ducati, Motoplat and other ignition systems. Technical data: Flywheel, outer diameter: 116mm Stator plate, outer diameter: Ø= ca.90mm Stator plate, bolt distance c-c: approx. 79.mm (4 fixing holes) Primary coil/light coil, bolt distance: c-c: approx. 54mm Light coil: 12V-43W (intended for use with voltage regulator) Direction of rotation: Clockwise (right side) For crankshaft with conicity: K1:7.5(13.5%) and input diameter Ø=14mm Holes for mounting fan wheel: 4xM5 and 3xM6 Flywheel puller: Thread M26x1.5 article no. 10186 Electrical diagram for mounting included. Recommended bulbs/signal horn: Front light: 12V-35/35W Brake light: 12V-5W Rear light: 12V-3~4W Signal horn: 12V/AC
