Ignition system switchless 6V-33W Electronic for Ilo/Victoria/NSU/Pilot/HVA etc.
€240.10€216.10
Lowest price in the last 30 days€242.50Description
Article no.: 30129
High quality and very user-friendly switchless flywheel magnet. Suitable for ILO G50, HVA D-motor, NSU, Pilot FM50/FM504, Victoria M50/M51, DKW 801 and others.

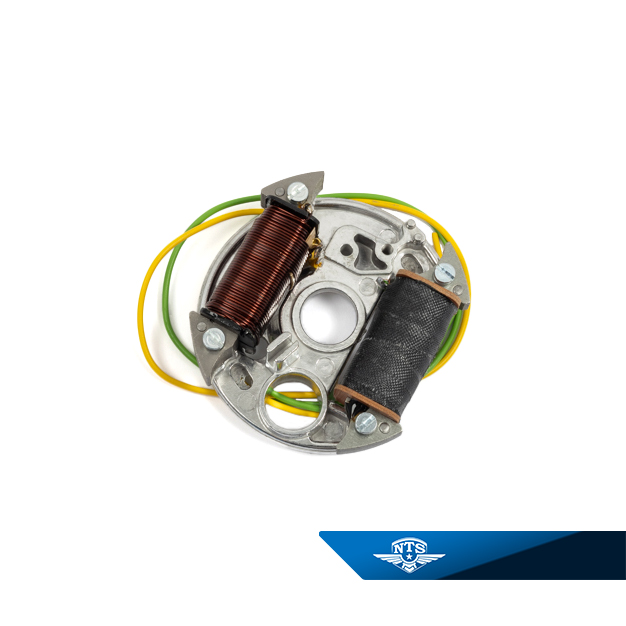

The kit is delivered complete as shown in the picture.
* Adjustment should be done with the help of a strobe light!
Technical data:
Flywheel, outer diameter: 115mm
Stator plate, outer diameter: Ø= approx. 85.5mm
Stator plate, bolt distance c-c: approx. 67mm
Ignition coil/light coil, bolt distance: c-c: approx.54mm
Ignition cable: L=~400mm
Light coil: 6V-33W
Direction of rotation: Counterclockwise/Clockwise
For crankshaft with conicity: K1:10(10%) and input diameter Ø=10mm
Flywheel puller: Thread M24x1,5 (see art.nr: 23231)
Wiring diagram included for correct connection.
Recommended bulbs/signal horn:
Front light: 6V-25/25W
Brake light: 6V-5W
Rear light: 6V-3~4W
Signal horn: 6V/AC (AC) art.nr: 10148
Function:
The feeder coil in the stator provides both:
energy to the ignition coil
and the ignition moment
The ignition time is determined by:
the position of the magnets in the rotor
the physical location of the coil
In the external ignition coil there is:
a diode + transistor that "senses" the peak of the voltage pulse
→ then the current is broken → spark
- Secure payment by card, Swish and Paypal
- Invoice, divided payment, direct payment via Klarna
- E-mail or call us, we reply swiftly!
- BrandNTS Premium Parts
- Fits toDKW -1958 Hummel Luxus 101 Hummel Standard 101 Hummel Super 102 Motor 801 Husqvarna Cornette/Sport Corona D-motor (Äggmotor) Lyx Roulette Populär Roulette Standard/Lyx Standard ILO FP50 G50 G50/V50 Piano Monark -1960 Motor HVA CM 25001. 2-vxl Motor ILO FP50 Motor ILO G50 Motor ILO G50/V50 Piano Motor NSU 51 ZT Motor Pilot FM 504. 2-vxl Motor Pilot FM50 1L NSU Cavallino Quickly L Quickly N Quickly S Quickly T Quickly TT Rex (Halmstad) Rexoped Crossline Rexoped Favorit Rexoped Fixline Rexoped Fleetline V Rexoped Fleetline Z Rexoped Royal Rexoped Topper Rexoped Victoria Rexoped Zündapp Scootoped Rex (RMW München) Motor FM 504. 2-vxl (Pilot) Motor FM50 1L. 1-vxl (Pilot) Sparta GA50/GB50/Sport (Ilo G50 Piano) GC/GD Tour/Sport (Ilo G50 Piano) GE50 Tour/Sport (Ilo G50 Piano) GF/GG50 Tour/Sport/Special (Ilo G50 Piano) GH50 Tour/Sport/Grand Sport (Ilo G50 Piano) GI50 Windsor/Sport/Grand Sport (Ilo G50 Piano) Tour ILO (Ilo G50 Piano) Transport (Ilo G50 Piano) Victoria -1960 Avanti 106 Motor M50 Motor M51 (807/808) Nicky R50 Preciosa RM51 Tory FM50 Vicky Vicky 3N Vicky III Vicky IV Vicky Luxus Vicky Super-Luxus 107
- ManufacturerNTS Parts
- Manufacturer Art NoK-4035
