Emblem Crescent gold - check the dimensions!
€8.90
Description
Article no.: 11569
Nicely made Emblem Crescent Gold sold individually.
Do not forget to buy the fastening clip art.no 13756.
Corresponds to original number:
27630-50 / 597519
Be sure to check the dimensions as there were more sizes:
If the emblem does not fit in your existing holes, new ones must be drilled.
The emblem cannot be aligned.

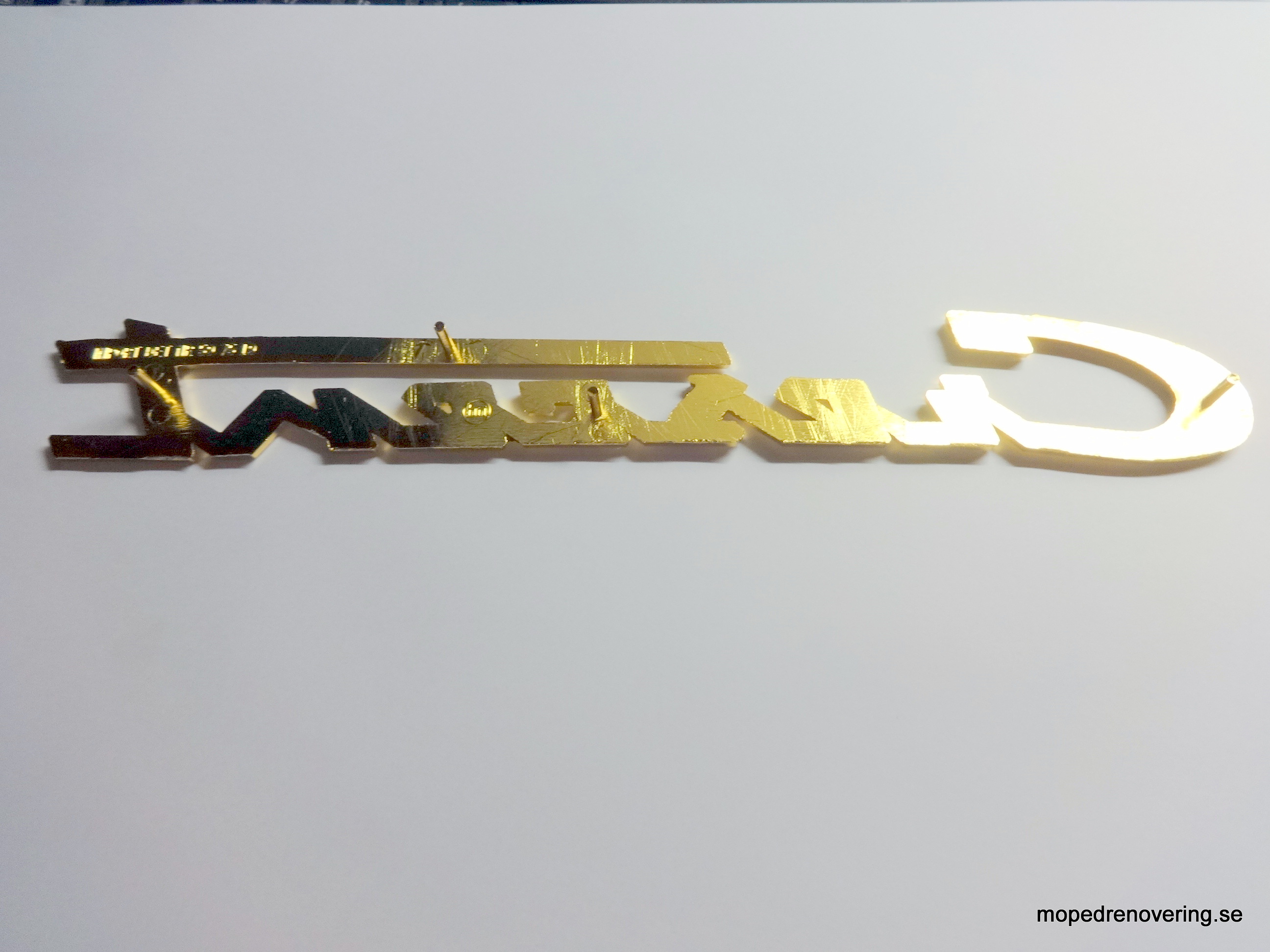

Total length 217 mm,
Height of the C 28 mm

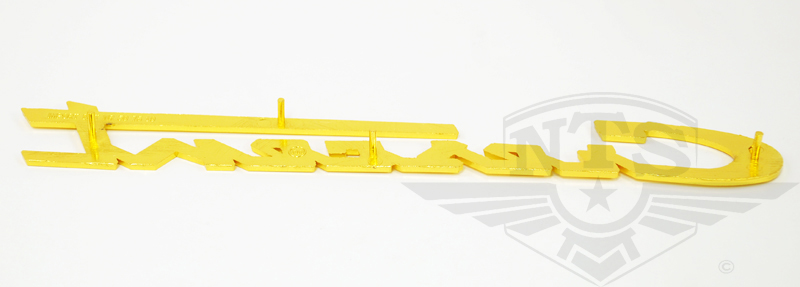

Distance between the spikes from the C side : 1-2 105 mm, 2-3 80 mm.
There is also a spike on the extended T, about 52 mm from spike 3.
Fits the following models:
1136, 1138, 1139, 1139B & 1140
Can also be used for:
1148, 1149, 1150, 1150-1, 1151 & 1151-1
On these, the hole pattern must be changed on the moped.
